Description

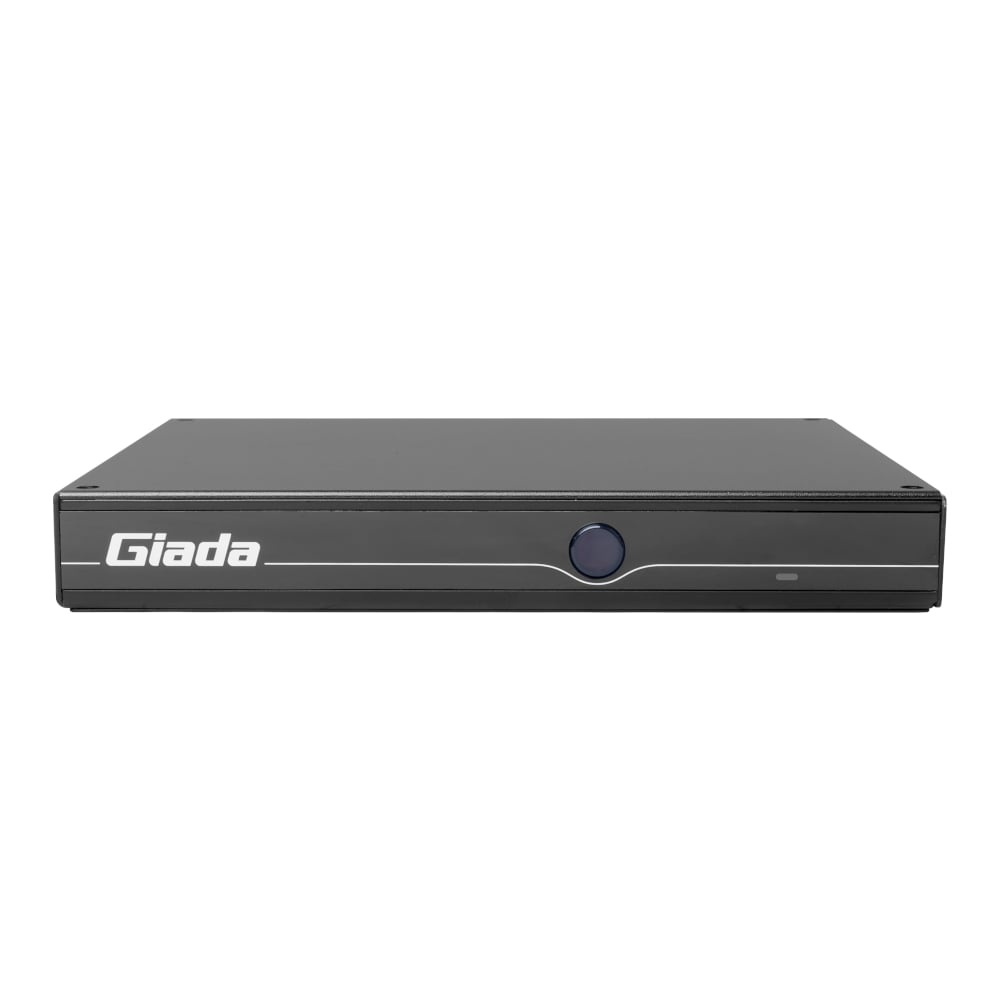

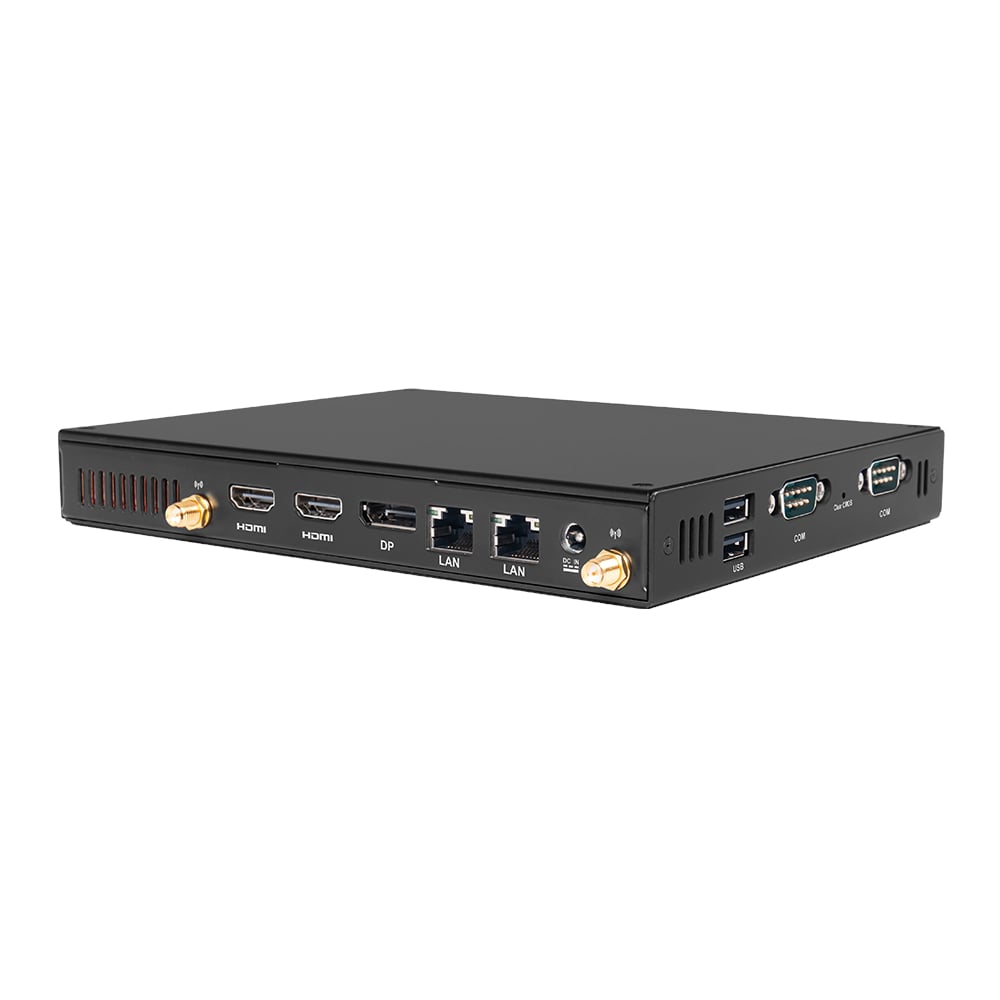

The Giada F108D Signage Player adopts Intel® Alder Lake-N processors, giving you good performance while featuring a low-power range from 6-15W. The book-size embedded PC is specially designed for digital signage and kiosk applications. The slim embedded PC supports rich I/O ports, including dual COM ports, 6 USB Type-A and dual LAN ports. It can also be easily integrated into vending machines, self-service and check-in kiosks. The digital signage player also comes with built-in Intel® UHD Graphics. It has a DP and two HDMI ports, supporting resolutions up to 4096 x 2160@60Hz. With a passive thermal cooling system, the fanless design reduces the failure rate and makes the device run noise-free and dustproof.
FEATURES:
- Intel® Processor N100
- DDR4 3200MHz memory support
- Intel UHD onboard graphics
- Up to 4k resolution support
- 1x DP and 2x HDMI output
- Support for Wi-Fi/Bluetooth module
- Small form factor design
SPECIFICATION:
- CPU: Intel® Processor N100 (Fanless)
- Turbo Frequency: 3.40GHz
- Chipset: SoC
- Processing Units: 4 Cores
- TDP: 6W
- System Memory: Up to 16 GB, 1 x SO-DIMM DDR4-3200 MHz
- Storage: 1 x M-Key M.2 (2280) for PCIe3.0 X4 SSD
- Watchdog Timer: Yes
- Auto Power On: Yes
- RTC: Set up independently every day, a week as a cycle
- Remo on: No
- Power Requirement: DC-IN, 19 V/2.37 A
- Construction: Metal
- Operating System: Windows 11 (64bit) /Linux Ubuntu (64bit)
- Operating Temperature: 0°C ~45°C (32°F~113°F) @0.7m/s Air Flow
- Certifications: CE, FCC Class B, UKCA
- Humidity: 95% @ 45°C (non-condensing
- Network Controller: 2 x Realtek RTL 8111H Gigabit Ethernet
- Ethernet Interface: 2 x RJ45
- Wi-Fi/BT: 1 x E-Key M.2 (2230) for Wi-Fi/BT, Support Wi-Fi 5, Wi-Fi 6
- Mobile Network: 1 x B-Key M.2 (3042) for 3G/4G, 1 x SIM Slot
- GPU: Intel® UHD Graphics
- Graphic Engine: DirectX 12.1, OpenGL 4.6, OpenCL 3.0
- Display Interface: 1 x DP (Max.4096 x 2160 @60Hz), 2 x HDMI (Max.4096 x 2160 @60Hz)
- USB: 2 x USB3.2 Gen2, 4 x USB2.0
- Serial Port: 2 x RS232
- Audio: 1 x MIC-IN, 1 x AUDIO-OUT
- Button: 1 x Power on, 1 x CLR-CMOS
- Antenna: 2 x Connector for Wi-Fi/BT
- Product Dimensions: 18.9 x 14.8 x 2.6 cm
WHAT’S IN THE BOX:
- Giada F108D Alder Lake-N Book Size Signage Player – Black x1
